Current Transformer

Shelly Smart Home

Current Transformer

Price range: 12.000 JOD through 15.000 JOD

Request information

Reference

Technical specifications

Every value below is sourced from the manufacturer datasheet. Engineering-first hardware, documented down to the last gram.

01

CURRENT TRANSFORMER 50A

  • Accuracy
    1%
  • Core
    Ferrite core
  • Electrical Strength
    3000VAC 1mA60s
  • Internal diameter
    11mm
  • Cable length
    60cm
  • Load Resistance
    20Ω
  • Rated Primary Current
    50A
  • Rated Secondary Current
    16.67mA
  • Saturation current
    ≥85A
  • Size
    23,5mm x 41,5mm x 26mm
02

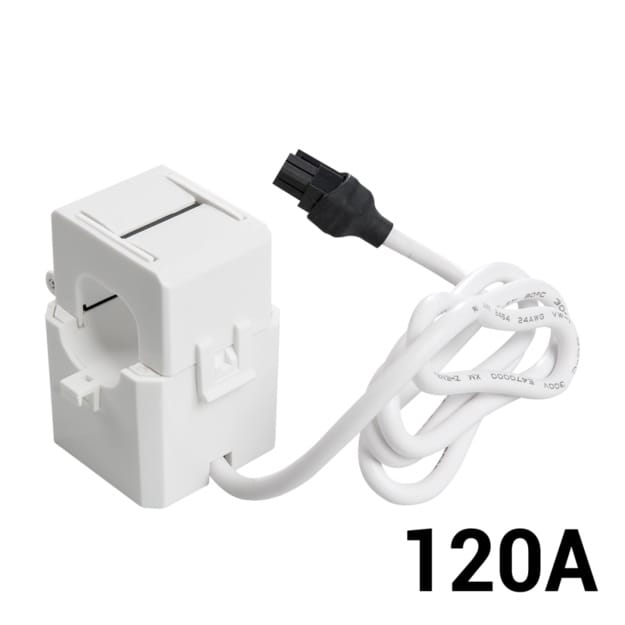

CURRENT TRANSFORMER 120A

  • Accuracy
    1%
  • Core
    Ferrite core
  • Electrical Strength
    3000VAC 1mA60s
  • Internal diameter
    17mm
  • Load Resistance
    20Ω
  • Rated Primary Current
    120A
  • Rated Secondary Current
    40mA
  • Saturation current
    ≥120A
  • Size
    31mm x 45mm x 30mm
03

FEATURES

  • Compatible 50A
    Shelly EM
  • Compatible 120A
    Shelly EM, Shelly 3EM
