Shelly 1 Mini Gen3

13.000 JOD

3 Years Manufacturer Warranty

World’s smallest Wi-Fi relay switch. Automate and control lights, garage, irrigation, and small appliances in under 10 mins. Equipped with Shelly chip & all Gen3 features.

Request information
  • World's smallest Wi-Fi relay switch. Automate and control lights, garage, irrigation, and small appliances in under 10 mins. Equipped with Shelly chip & all Gen3 features.

Reference

Technical specifications

Every value below is sourced from the manufacturer datasheet. Engineering-first hardware, documented down to the last gram.

01

Physical

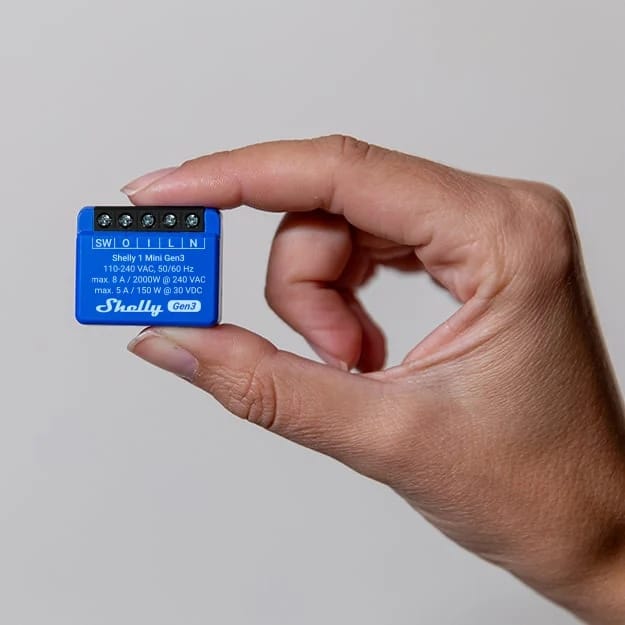

  • Size (HxWxD)
    29x35x16 ±0.5 mm / 1.11×1.35×0.63 ±0.02 in
  • Weight
    19 ±1 g / 0.65 ±0.04 oz

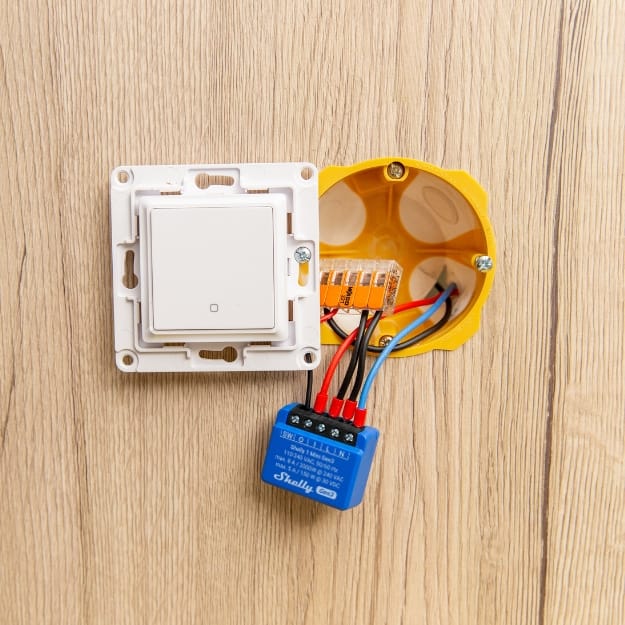

  • Mounting
    Wall box
  • Screw terminals max torque
    0.4 Nm / 3.5 lbin
  • Conductor cross section
    0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
  • Conductor stripped length
    6 to 7 mm / 0.24 to 0.28 in
  • Shell material
    Plastic
  • Color
    Blue
02

Environmental

  • Ambient temperature
    -20 °C to 40 °C / -5 °F to 105 °F
  • Humidity
    30 % to 70 % RH
  • Max. altitude
    2000 m / 6562 ft
03

Electrical

  • Power supply
    110 – 240 VAC
  • Relay
    Dry, NO contact, 1-pole, µ contact
  • External protection
    10 A, tripping characteristic B or C,

  • 6 kA interrupting rating,

  • Energy limiting class 3
  • Power consumption
    < 1.2 W
04

Output circuits ratings

  • Max switching voltage AC
    240 V
  • Max switching voltage DC
    30 V
  • Max switching current AC
    8A
  • Max switching current DC
    5A
  • Max switching power AC
    2000 W
  • Max switching power DC
    150 W
  • Power measurement
    No
  • Voltage protection / Cutoff
    No
  • Current protection / Cutoff
    No
  • Max power protection / Cutoff
    No
05

Radio

  • RF band
    2400 – 2495 MHz
  • Max. RF power
    <20 dBm
  • Wi-Fi protocol
    802.11 b/g/n
  • Wi-Fi Range
    Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors

  • (Depends on local conditions)
  • Bluetooth Protocol
    4,2
  • Bluetooth Range
    Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors

  • (Depends on local conditions)
06

MCU

  • CPU
    ESP-Shelly-C38F
  • Flash
    8 MB
07

Firmware capabilities

  • Schedules
    20
  • Webhooks (URL actions)
    20 with 5 URLs per hook
  • MQTT
    Yes
  • UDP
    Yes
  • Scripting
    Yes
