Shelly Smart Home

Shelly BLU Gateway

Name: Shelly BLU Gateway
SKU: 286
Availability: InStock

16.000 JOD

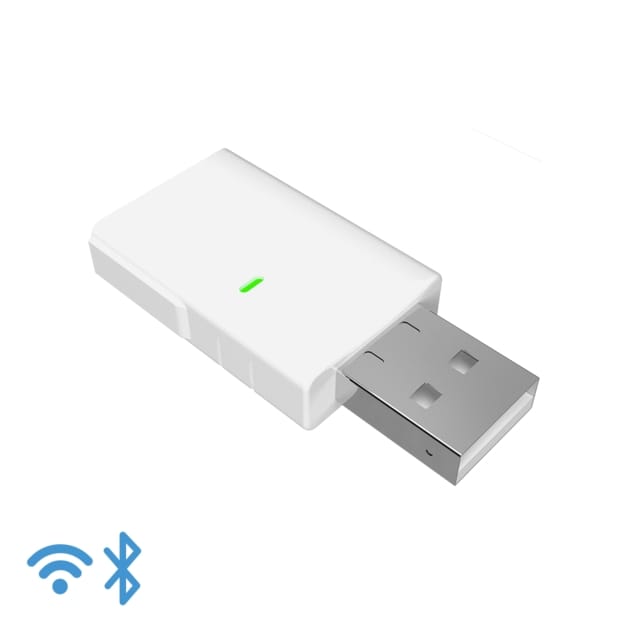

A dongle which works as a bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-bluetooth device.

Request information

A dongle which works as a bridge between your Shelly BLU devices and the wider Shelly ecosystem. It receives Bluetooth signals and sends them to the cloud or locally to another non-bluetooth device.

Reference

Technical specifications

Every value below is sourced from the manufacturer datasheet. Engineering-first hardware, documented down to the last gram.

01

Physical

Size (HxWxD)
45x20x8 mm / 1.77×0.79×0.21 in
Weight
5g / 0.18 oz
Material
Plastic
Color
White

02

Environmental

Ambient temperature
-20 °C to 40 °C / -5 °F to 105 °F
Humidity
30 % to 70 % RH

03

Electrical

Power supply
5 VDC (from USB Type-A port)
Power consumption
<1 W

04

Radio

RF band
2400 – 2483.5 MHz
Max. RF power
<20 dBm
Bluetooth Protocol
4.2
Bluetooth Range
Up to 20 m / 66 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
