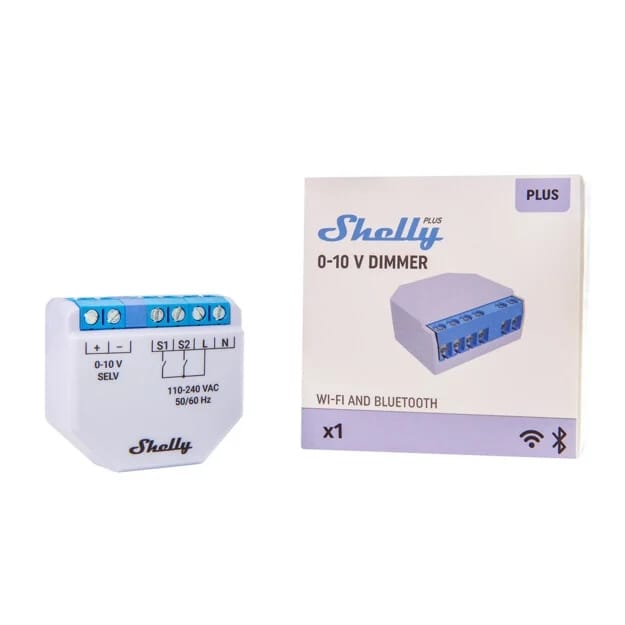

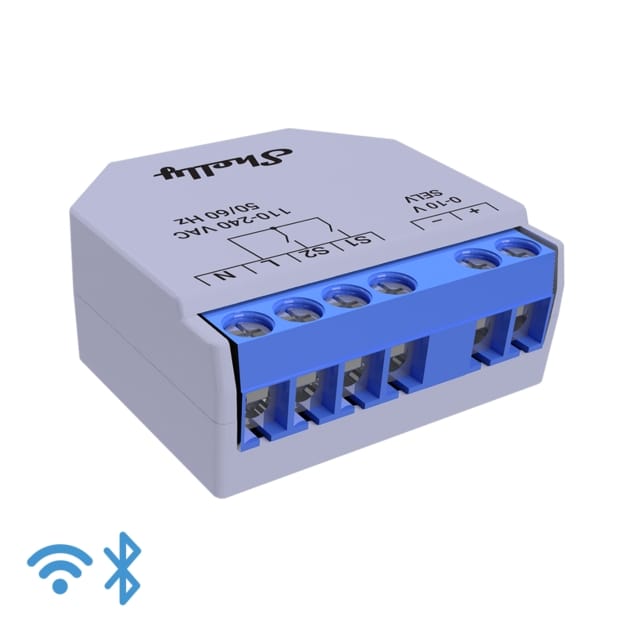

Shelly Plus 0-10V Dimmer

16.000 JOD

3 Years Manufacturer Warranty

With this device you can use your own light switches and seamlessly integrate dimming capabilities into your current setup.

Request information
  • With this device you can use your own light switches and seamlessly integrate dimming capabilities into your current setup.

Reference

Technical specifications

Every value below is sourced from the manufacturer datasheet. Engineering-first hardware, documented down to the last gram.

01

Physical

  • Size (HxWxD)
    42x37x17 ±0.5 mm / 1.65×1.46×0.66 ±0.02 in
  • Weight
    17 g / 0.60 oz
  • Screw terminals max torque
    0.4 Nm / 3.5 lbin
  • Conductor cross section
    0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded, and bootlace ferrules)
  • Conductor stripped length
    5 to 6 mm / 0.20 to 0.24 in
  • Mounting
    In-wall
  • Shell material
    Plastic
  • Color
    Shell: 2716C, print: black
02

Environmental

  • Ambient working temperature
    -20 °C to 40 °C / -5 °F to 105 °F
  • Humidity
    30 % to 70 % RH
  • Max. altitude
    2000 m / 6562 ft
03

Electrical

  • Power supply
    110 – 240 VAC ±10%
  • Power consumption
    < 1.2 W
  • Neutral not needed
    No
  • 0-10 V Voltage control type
    Sinking
04

Output circuits ratings

  • Max control voltage
    10VDC
  • Max control current
    0.35 W
05

Sensors, meters

  • Internal-temperature sensor
    Yes
06

Wi-Fi

  • Wi-Fi protocol
    802.11 b/g/n
  • Wi-Fi Range
    Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors

  • (Depends on local conditions)
  • Max. RF power
    < 20 dBm
  • RF band
    2401 – 2495 МHz
07

Bluetooth

  • Protocol
    4.2
  • Range
    Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors

  • (Depends on local conditions)
  • Max. RF power
    < 4 dBm
  • RF band
    2400 – 2483.5 MHz
08

MCU

  • CPU
    ESP32
  • Flash
    4 MB
09

Firmware capabilities

  • Schedules
    20
  • Webhooks (URL actions)
    20 with 5 URLs per hook
  • MQTT
    Yes
  • Scripting
    Yes
