Shelly Smart Home

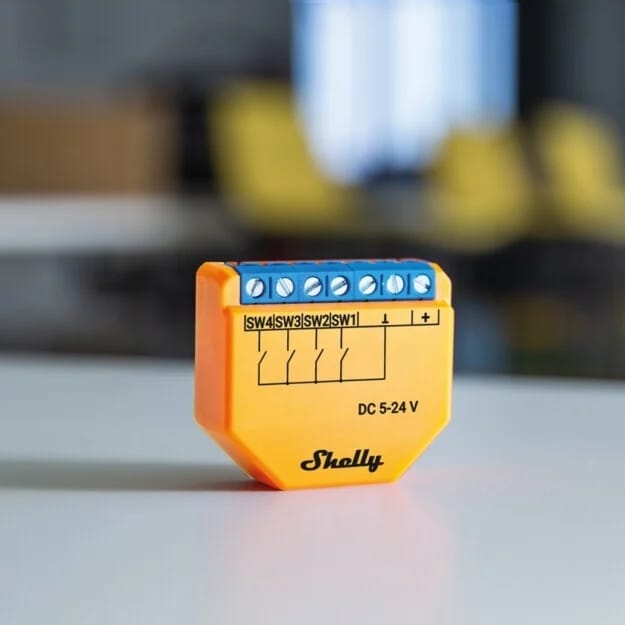

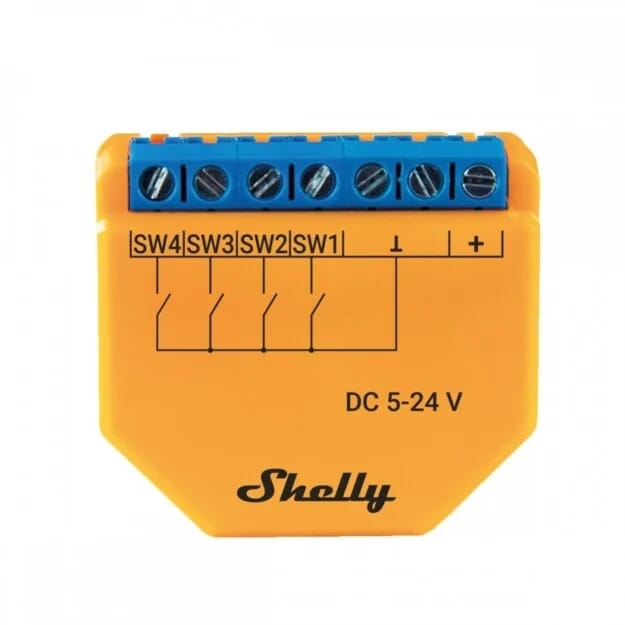

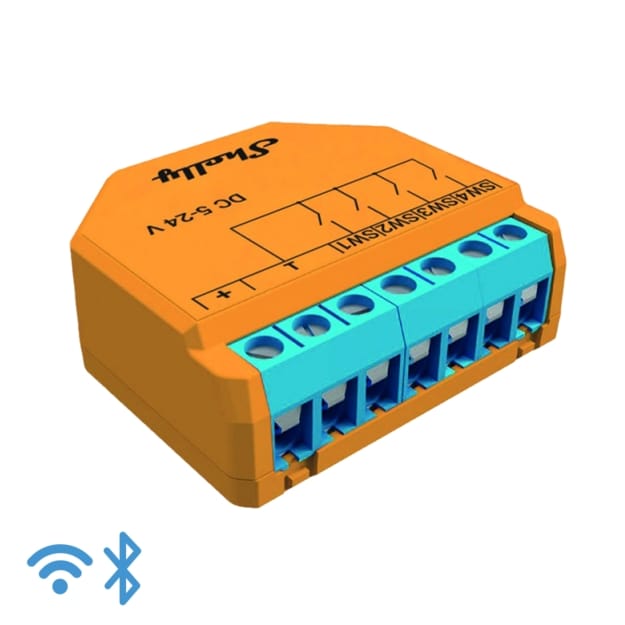

Shelly Plus i4 DC

Name: Shelly Plus i4 DC
SKU: 264
Availability: InStock

13.000 JOD

3 Years Manufacturer Warranty

Wi-Fi-operated 4-digital inputs controller that allows you to manually activate or deactivate any created scene, run synchronized actions, or execute complex trigger scenarios.

Request information

Wi-Fi-operated 4-digital inputs controller that allows you to manually activate or deactivate any created scene, run synchronized actions, or execute complex trigger scenarios.

Reference

Technical specifications

Every value below is sourced from the manufacturer datasheet. Engineering-first hardware, documented down to the last gram.

01

Physical

Size (HxWxD)
37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in
Weight
17 g / 0.6 oz
Mounting
Wall box
Screw terminals max torque
0.4 Nm / 3.5 lbin
Conductor cross section
0.5 to 1.5 mm² / 20 to 16 AWG
Conductor stripped length
5 to 6 mm / 0.20 to 0.24 in
Shell material
Plastic

02

Environmental

Ambient temperature
-20 °C to 40 °C / -5 °F to 105 °F
Humidity
30 % to 70 % RH
Max. altitude
2000 m / 6562 ft

03

Electrical

Power supply
5 – 24 VDC
Power consumption
< 1 W

04

Sensors, meters

Temperature sensor
Yes

05

Radio

RF band
2400 – 2495 MHz
Max. RF power
<20 dBm
Wi-Fi protocol
802.11 b/g/n
Wi-Fi Range
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol
4.2
Bluetooth Range
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
