Shelly Smart Home

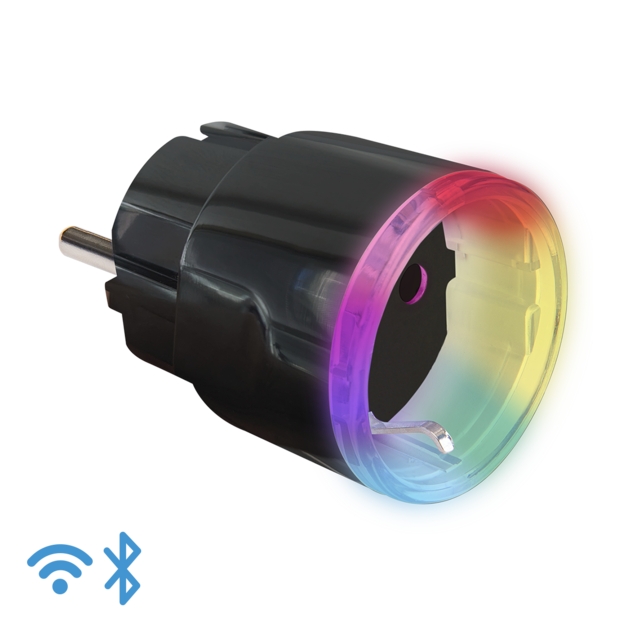

Shelly Plus Plug S

Name: Shelly Plus Plug S
SKU: 306
Availability: InStock

21.000 JOD

3 Years Manufacturer Warranty

Smart plug with Wi-Fi, Bluetooth connectivity and power metering. Monitor and control lighting, heating, or any other connected electrical appliance at home with a power rating of up to 2500W (12A).

Available Colors

Clear

Request information

Smart plug with Wi-Fi, Bluetooth connectivity and power metering. Monitor and control lighting, heating, or any other connected electrical appliance at home with a power rating of up to 2500W (12A).

Reference

Technical specifications

Every value below is sourced from the manufacturer datasheet. Engineering-first hardware, documented down to the last gram.

01

Physical

Size (HxWxD)
44x44x70 ±0.5 mm / 1.73×1.73×2.75 ±0.02 in
Weight
60 ±1 g / 2.08 ±0.04 oz
Compatible sockets
CEE 7/1, CEE 7/3 (Type F / Schuko) or CEE 7/5 (Type E)
Compatible plugs
CEE 7/2, CEE 7/4 (Type F / Schuko), CEE 7/7, CEE 7/16 (Type C) or CEE 7/17
Shell material
Plastic
Color
White

02

Environmental

Ambient temperature
-20 °C to 40 °C / -5 °F to 105 °F
Humidity
30 % to 70 % RH
Max. altitude
2000 m / 6562 ft

03

Electrical

Power supply voltage AC
230 V ±10 % , 50/60 Hz
Power supply voltage DC
N/A
Power consumption
< 1 W

04

Output circuits ratings

Max switching voltage AC
260 V
Max switching voltage DC
N/A
Max switching current AC
12 A
Max switching current DC
N/A

05

Sensors, meters

Temperature sensor
Yes
Voltmeter
Yes
Ammeter
Yes
Power and energy meters
Yes

06

Radio

RF band
2400 – 2495 MHz
Max. RF power
<20 dBm
Wi-Fi protocol
802.11 b/g/n
Wi-Fi Range
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol
4.2
Bluetooth Range
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
