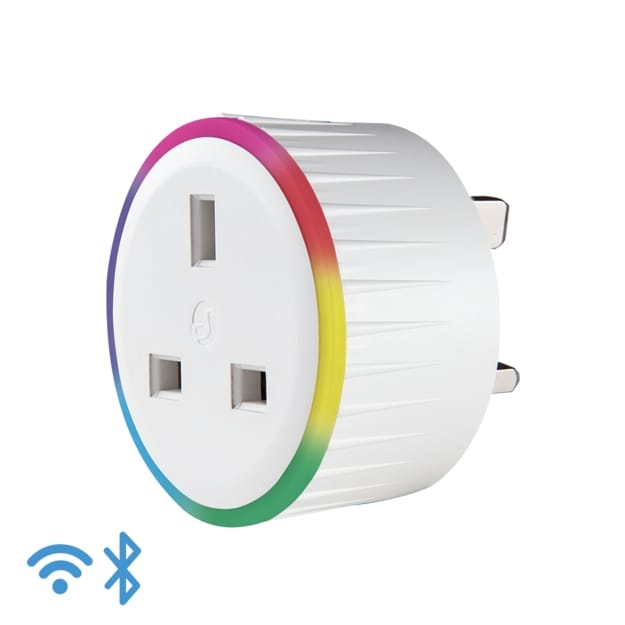

Shelly Plus Plug UK

3 Years Manufacturer Warranty

Smart plug with Wi-Fi, Bluetooth connectivity and power metering. Monitor and control lighting, heating, or any other connected electrical appliance at home with a power rating of up to 3000W.

Request information

Smart plug with Wi-Fi, Bluetooth connectivity and power metering. Monitor and control lighting, heating, or any other connected electrical appliance at home with a power rating of up to 3000W.

Reference

Technical specifications

Every value below is sourced from the manufacturer datasheet. Engineering-first hardware, documented down to the last gram.

01

Physical

Size (HxWxD)
60x60x56 ±0.5 mm / 2.36×2.36×2.20 ±0.02 in
Weight
74 ±1 g / 2.6 ±0.04 oz
Compatible sockets
BS 1363 (Type-G)
Compatible plugs
BS 1363 (Type-G)
Shell material
Plastic
Color
White

02

Environmental

Ambient temperature
-20 °C to 40 °C / -5 °F to 105 °F
Humidity
30 % to 70 % RH
Max. altitude
2000 m / 6562 ft

03

Electrical

Power supply voltage AC
230 V ±10 % , 50/60 Hz
Power supply voltage DC
N/A
Power consumption
< 1 W

04

Output circuits ratings

Max switching voltage AC
260 V
Max switching voltage DC
N/A
Max switching current AC
13 A
Max switching current DC
N/A

05

Sensors, meters

Temperature sensor
Yes
Voltmeter
Yes
Ammeter
Yes
Power and energy meters
Yes

06

Radio

RF band
2400 – 2495 MHz
Max. RF power
<20 dBm
Wi-Fi protocol
802.11 b/g/n
Wi-Fi Range
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol
4.2
Bluetooth Range
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
