Shelly Pro 4PM

Name: Shelly Pro 4PM
SKU: 271
Availability: InStock

93.000 JOD

5 Years Manufacturer Warranty

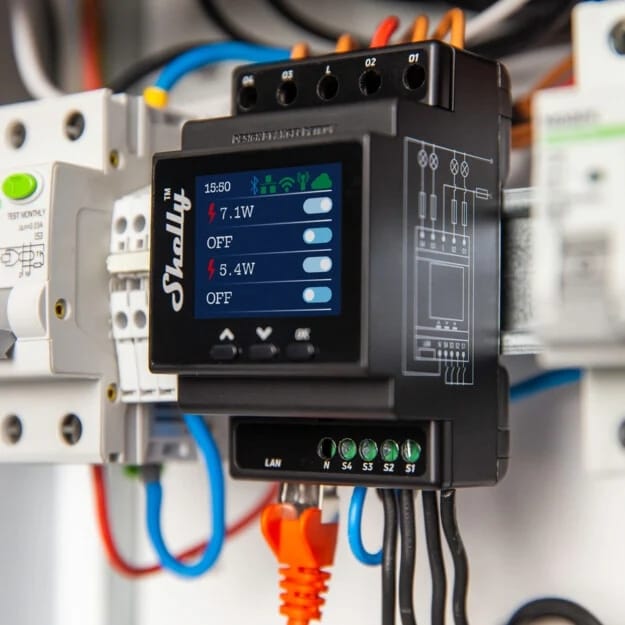

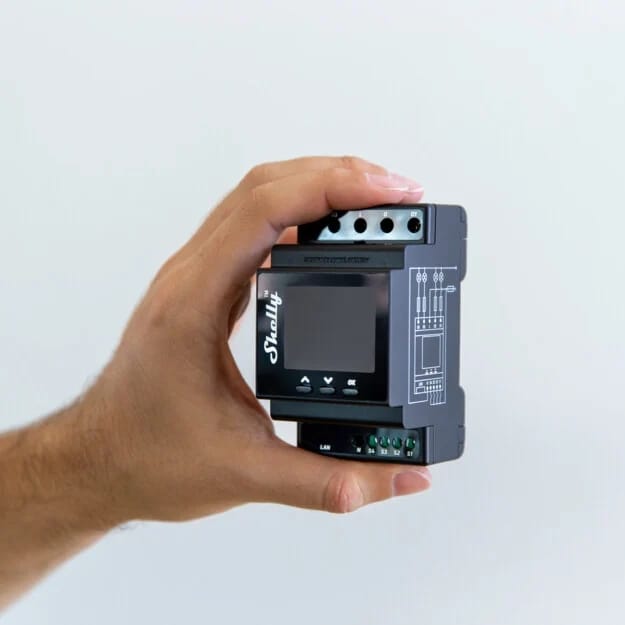

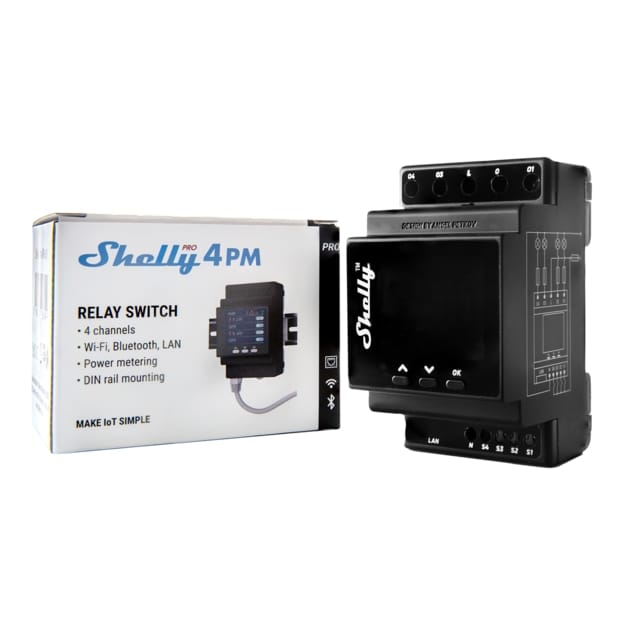

Professional 4-channel DIN rail smart switch with power metering, supporting up to 16A per channel. Control and monitor the consumption for each channel separately.

Request information

Professional 4-channel DIN rail smart switch with power metering, supporting up to 16A per channel. Control and monitor the consumption for each channel separately.

Reference

Technical specifications

Every value below is sourced from the manufacturer datasheet. Engineering-first hardware, documented down to the last gram.

01

Physical

Size (HxWxD)
96x53x59 ±0.02 mm / 3.78×2.01×2.32 ±0.02 in

02

Weight:

Mounting
DIN rail
Screw terminals max torque
0.4 Nm / 3.5 lbin (green connectors)
Conductor cross section
0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)
Conductor stripped length
6 to 7 mm / 0.24 to 0.28 in (green connectors)
Shell material
Plastic
Color
Black

03

Environmental

Ambient temperature
-20 °C to 40 °C / -5 °F to 105 °F
Humidity
30 % to 70 % RH
Max. altitude
2000 m / 6562 ft

04

Electrical

Power supply voltage AC
110 – 240 V
Power supply voltage DC
N/A
Power consumption
< 4 W
Neutral not needed
No

05

Output circuits ratings

Max switching voltage AC
240 V
Max switching voltage DC
N/A
Max switching current AC
16 A per channel, 40 A total
Max switching current DC
N/A

06

Sensors, meters

Voltmeter (AC)
Yes
Ammeter (AC)
Yes
Temperature sensor
Yes

07

Radio

RF band
2400 – 2495 MHz
Max. RF power
<20 dBm
Wi-Fi protocol
802.11 b/g/n
Wi-Fi Range
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol
4.2
Bluetooth Range
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
