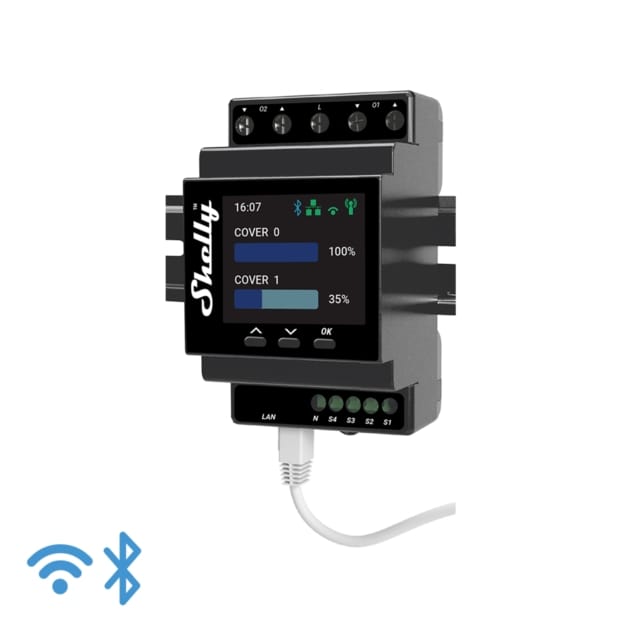

Shelly Pro Dual Cover PM

Name: Shelly Pro Dual Cover PM
SKU: 272
Availability: InStock

93.000 JOD

5 Years Manufacturer Warranty

Dual-cover smart controller with integrated precise power meters – control and monitor the consumption of each cover separately. Perfect for automation of roller shutters, curtains, gates, etc.

Request information

Dual-cover smart controller with integrated precise power meters – control and monitor the consumption of each cover separately. Perfect for automation of roller shutters, curtains, gates, etc.

Reference

Technical specifications

Every value below is sourced from the manufacturer datasheet. Engineering-first hardware, documented down to the last gram.

01

Physical

Size (HxWxD)
96x53x59 ±0.02 mm / 3.78×2.01×2.32 ±0.02 in
Weight
0.150kg
Mounting
DIN rail
Screw terminals max torque
0.4 Nm / 3.5 lbin (green connectors)
Conductor cross section
0.5 to 2.5 mm² / 20 to 14 AWG (green connectors)
Conductor stripped length
6 to 7 mm / 0.24 to 0.28 in (green connectors)
Shell material
Plastic
Color
Black

02

Environmental

Ambient temperature
-20 °C to 40 °C / -5 °F to 105 °F
Humidity
30 % to 70 % RH
Max. altitude
2000 m / 6562 ft

03

Electrical

Power supply voltage AC
110 – 240 V
Power supply voltage DC
N/A
Power consumption
< 3 W
Neutral not needed
No

04

Output circuits ratings

Controlled motor max. power
• 1.0 HP @ 240 VAC, • 0.5 HP @ 120 VAC

05

Sensors, meters

Voltmeter (AC)
Yes
Ammeter (AC)
Yes
Temperature sensor
Yes

06

Radio

RF band
2400 – 2495 MHz
Max. RF power
<20 dBm
Wi-Fi protocol
802.11 b/g/n
Wi-Fi Range
Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol
4.2
Bluetooth Range
Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
