Details
-
Power supply
110 – 240 V AC, 50/60 Hz -
Power consumption
< 0,3W -
Power measurement [W]
Yes -
Max. switching voltage AC
240 V -
Max. switching current AC
8 A -
Max switching power AC
2000 W -
Max. switching voltage DC
N/A -
Max. switching current DC
N/A -
Overheating protection
Yes -
Overload protection
Yes -
Distance
Up to 40 m indoors (131 ft.) (depends on local condition) -
Z-Wave® repeater
Yes -
CPU
Z-Wave® S800 -
Z-Wave® frequency bands
868,4 MHz -
Maximum radio frequency power transmitted in frequency band(s)
< 25 mW -

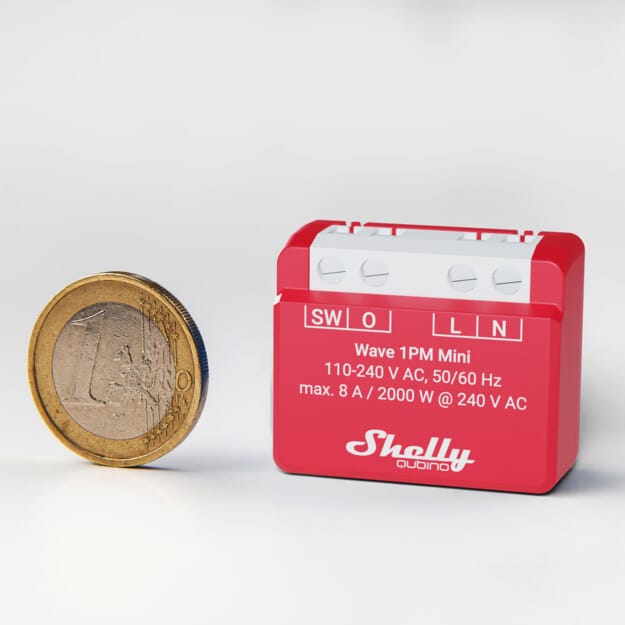

Size (H x W x D)
29x35x16 ±0.5 mm / 1.11×1.35×0.63 ±0.02 in -
Weight
18 ±1 g / 0.63 ±0.04 oz -

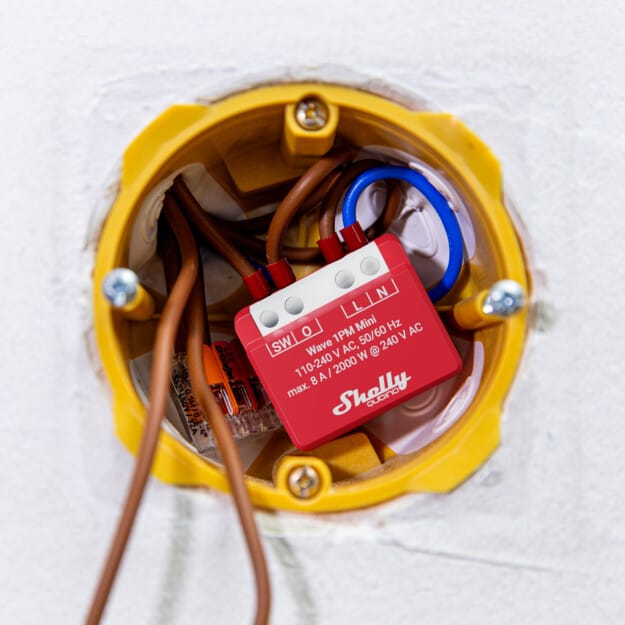

Mounting
Wall box -
Screw terminals max. torque
0.4 Nm / 3.54 lbin -
Conductor cross section
0.5 to 1.5 mm² / 20 to 16 AWG -
Conductor stripped length
5 to 6 mm / 0.20 to 0.24 in -
Shell material
Plastic -
Color
Red -
Ambient temperature
-20°C to 40°C / -5°F to 105°F -
Humidity
30% to 70% RH -
Max. altitude
2000 m / 6562 ft.
