Details
-
Power supply
110-240 V AC / 24 V DC +/-10% -
Power consumption
< 0.3 W -
Power measurement (W)
Yes -
Max switching voltage AC
240 V -
Max switching current AC
10 A per channel, 16 A total, 18 A total peak -
Max switching voltage DC
30 V -
Max switching current DC
10 A -
Overheating protection
Yes -
Overload protection
Yes -
Distance
Up to 40 m indoors (131 ft.) (depends on local condition) -
Z-Wave™ repeater
Yes -
CPU
Z-Wave™ S800 -
Z-Wave™ frequency band
868,4 MHz -
Maximum radio frequency power transmitted in frequency band(s)
< 25 mW -

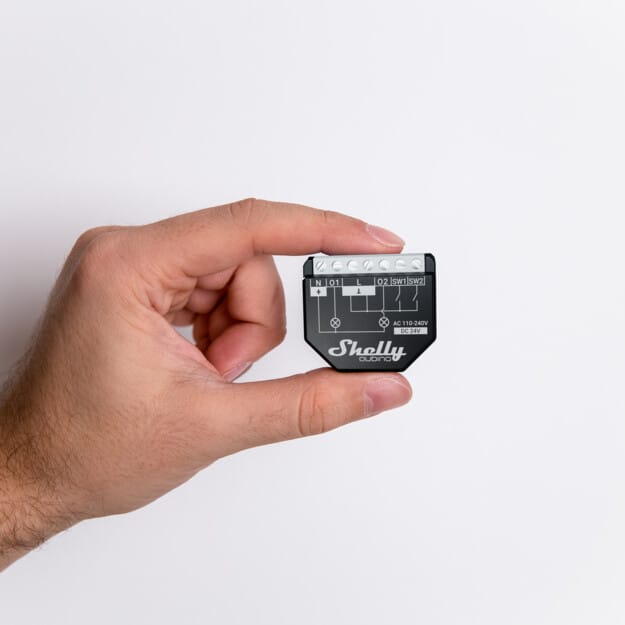

Size (H x W x D)
37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in -

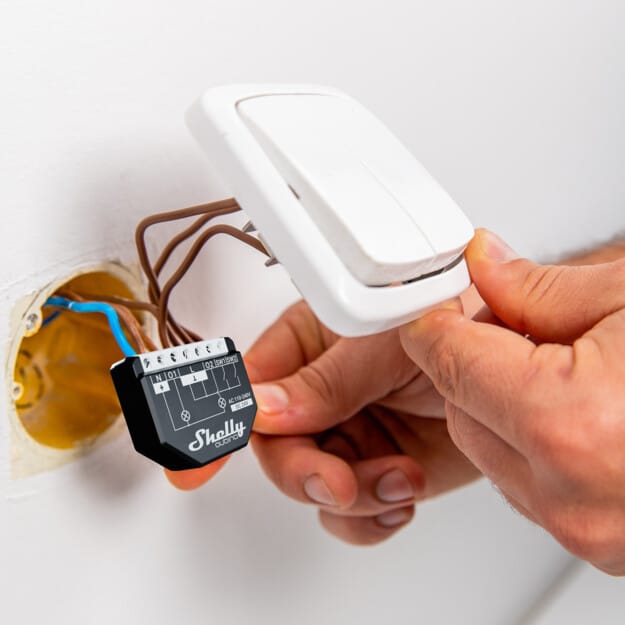

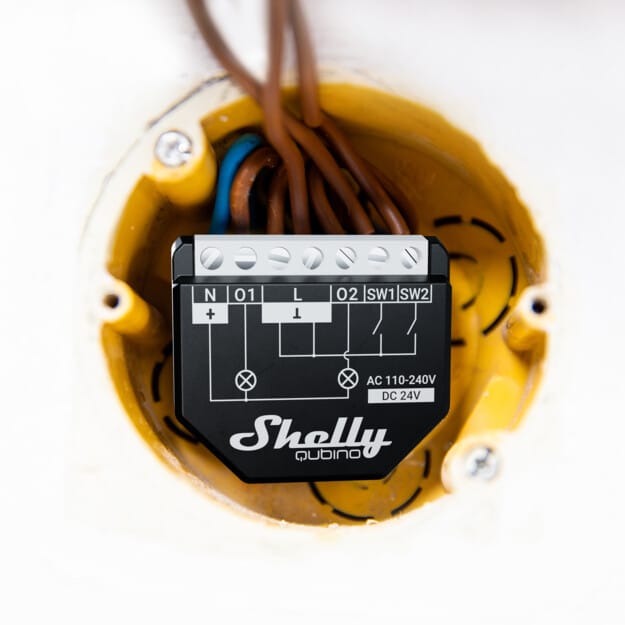

Mounting
Wall console -
Screw terminals max. torque
0.4 Nm / 3.5 lbin -
Conductor cross section
0.5 to 1.5 mm² / 20 to 16 AWG -
Conductor stripped length
5 to 6 mm / 0.20 to 0.24 in -
Shell material
Plastic -
Color
Black -
Ambient temperature
-20°C to 40°C / -5°F to 105°F -
Humidity
30% to 70% RH -
Max. altitude
2000 m / 6562 ft.
