Shelly Smart Home

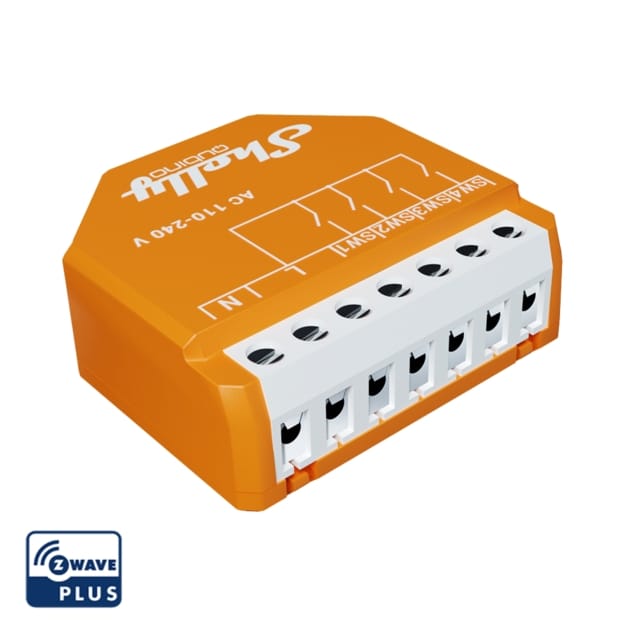

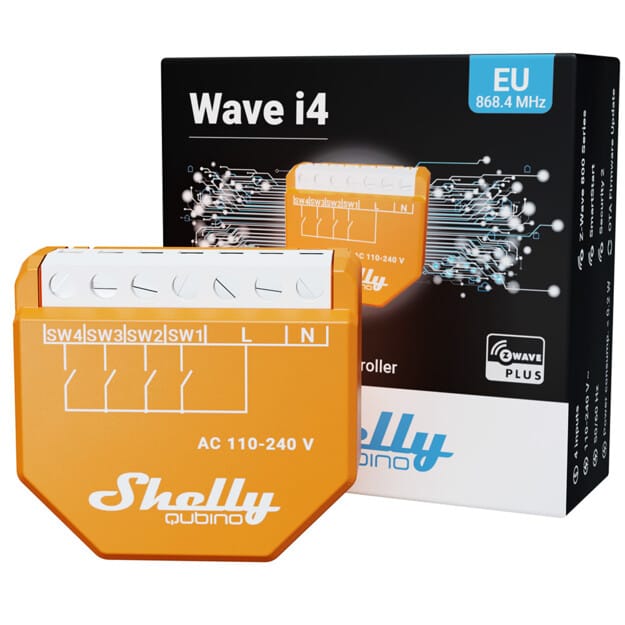

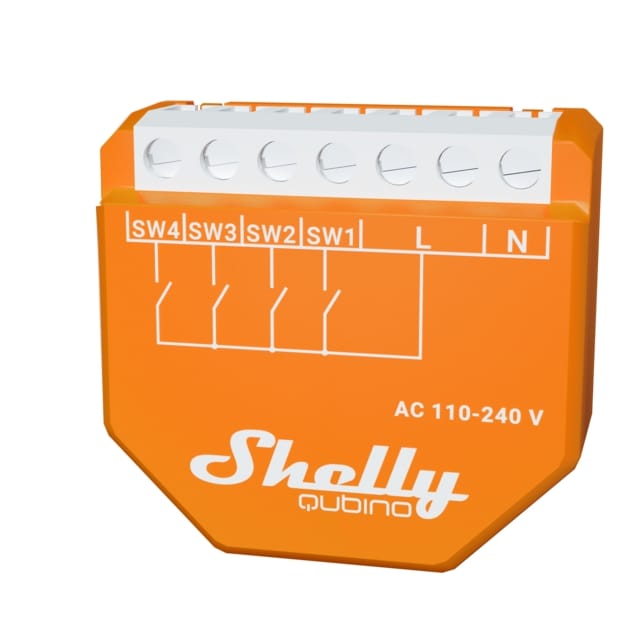

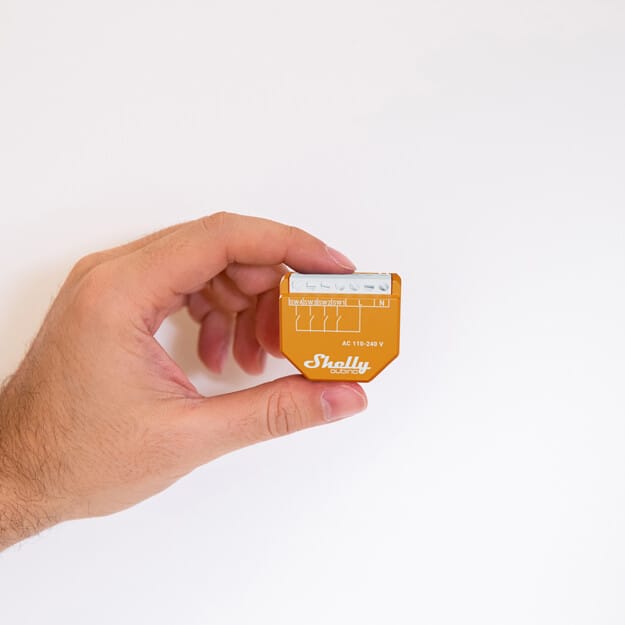

Shelly Qubino Wave i4

Name: Shelly Qubino Wave i4
SKU: 297
Availability: InStock

18.000 JOD

3 Years Manufacturer Warranty

Manually activate or deactivate any created scene, run synchronized actions, or execute complex trigger scenarios. Control other Z-Wave devices within your network with one push of a button.

Request information

Manually activate or deactivate any created scene, run synchronized actions, or execute complex trigger scenarios. Control other Z-Wave devices within your network with one push of a button.

Reference

Technical specifications

Every value below is sourced from the manufacturer datasheet. Engineering-first hardware, documented down to the last gram.

01

Details

Power supply AC
110 – 240 V AC, 50/60 Hz
Power supply DC
No
Power consumption
< 0.2 W
Overload protection
No
Power measurement
No
Working without a neutral line
No
Number of inputs
4
Distance
Up to 40 m indoors (131 ft.) (depends on local condition)
Z-Wave® repeater
Yes
CPU
Z-Wave® S800
Z-Wave® frequency band
868,4 MHz; 865,2 MHz; 869,0 MHz; 921,4 MHz; 908,4 MHz; 916 MHz; 919,8 MHz; 922,5 MHz; 919,7-921,7-923,7 MHz; 868,1 MHz; 920,9 MHz
Maximum radio frequency power transmitted in frequency band(s)
< 25 mW
Size (H x W x D)
37x42x16 ±0.5 mm / 1.46×1.65×0.63 ±0.02 in
Weight
17 g / 0.6 oz
Mounting
Wall console
Screw terminals max. torque
0.4 Nm / 3.5 lbin
Conductor cross section
0.5 to 1.5 mm? / 20 to 16 AWG
Conductor stripped length
5 to 6 mm / 0.20 to 0.24 in
Shell material
Plastic
Color
Orange
Ambient temperature
-20°C to 40°C / -5°F to 105°F
Humidity
30 % to 70 % RH
