Details
-
Power supply
110-240 V AC / 24–30 V DC -
Power consumption
< 0.3 W -
Power measurement (W)
Yes -
External protection
16 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3 -
Max measurement power
3840 W -
Max measurement current
16 A -
Overheating protection
Yes -
Distance
Up to 40 m indoors (131 ft.) (depends on local condition) -
Z-Wave repeater
Yes -
CPU
Z-WaveS800 -
Z-Wave frequency bands
868,4 MHz -
Maximum radio frequency power transmitted in frequency band(s)
< 25 mW -
Size(H x W x D)
29x35x16 ±0.5 mm / 1.11×1.35×0.63 ±0.02 in -
Weight
13 ±1 g / 0.46 ±0.04oz -

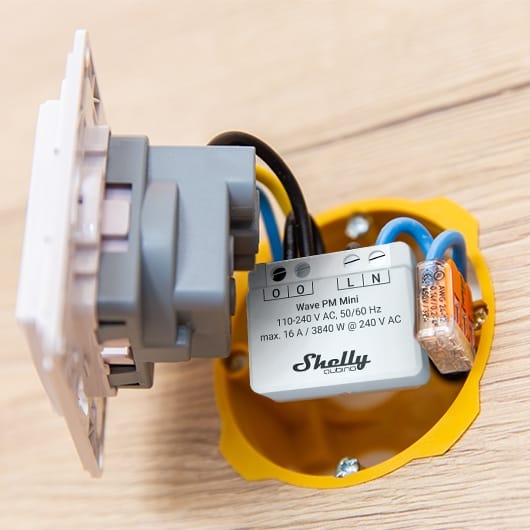

Mounting
Wallbox -
Screw terminals max.torque
0.4Nm/ 3.54lbin -
Conductor cross section
0.5 to 1.5 mm² / 20 to 16 AWG -
Conductor stripped length
5 to 6 mm / 0.20 to 0.24 in -
Shell material
Plastic -
Color
Lightgrey -
Ambient temperature
-20°C to 40°C / -5°F to 105°F -
Humidity
30% to 70% RH -
Max.altitude
2000 m / 6562ft.
