Details
-
Power supply
110-240 V AC, 50/60 Hz -
Power consumption
< 0.3W -
Power measurement (W)
Yes -
Max. switching voltage AC
240 V -
Max. switching current AC
16 A -
Max. switching voltage DC
N/A -
Max. switching current DC
N/A -
Overheating protection
Yes -
Overload protection
Yes -
Overvoltage protection
Yes -
Distance
Up to 40 m indoors (131 ft.) (depends on local condition) -
Z-Wave repeater
Yes -
CPU
Z-Wave S800 -
Z-Wave frequency bands
868,4 MHz -
Maximum radio frequency power transmitted in frequency bend(s)
< 25 mW -
Size (H x W x D)
94x19x69 ±0.5 mm / 3.70×0.75×2.71 ±0.02 in -
Weight
61 g / 2.15 oz. -

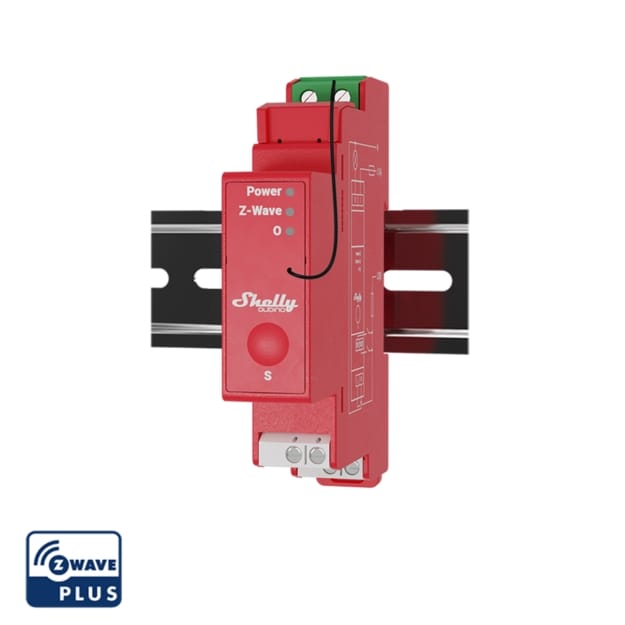

Mounting
DIN rail -
Screw terminals max. Torque
0.4 Nm / 3.54 lbin -
Conductor cross section
0.5 to 2.5 mm² / 20 to 14 AWG (green connector) 0.5 to 1.5 mm² / 20 to 16 AWG (white connectors) -
Conductor stripped length
6 to 7 mm / 0.24 to 0.28 in (green connector) 5 to 6 mm / 0.20 to 0.24 in (white connectors) -
Shell material
Plastic -
Color
Red -
Ambient temperature
-20°C to 40°C / -5°F to 105°F -
Humidity
30 % to 70 % RH -
Max. Altitude
2000 m / 6562 ft.
