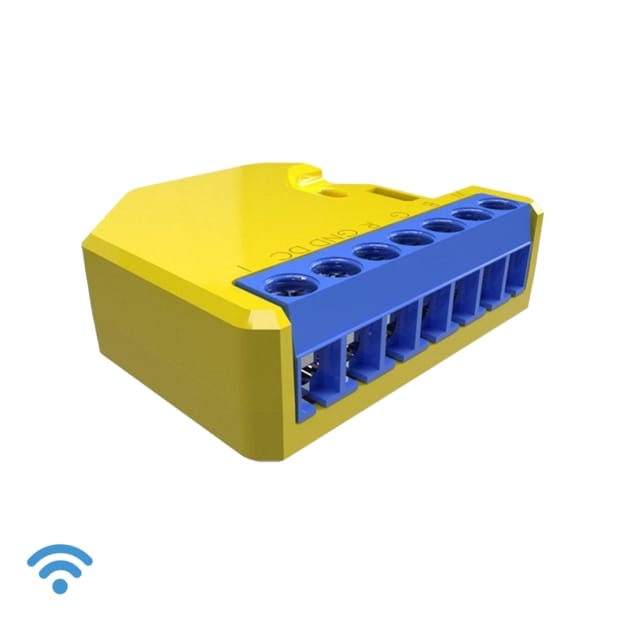

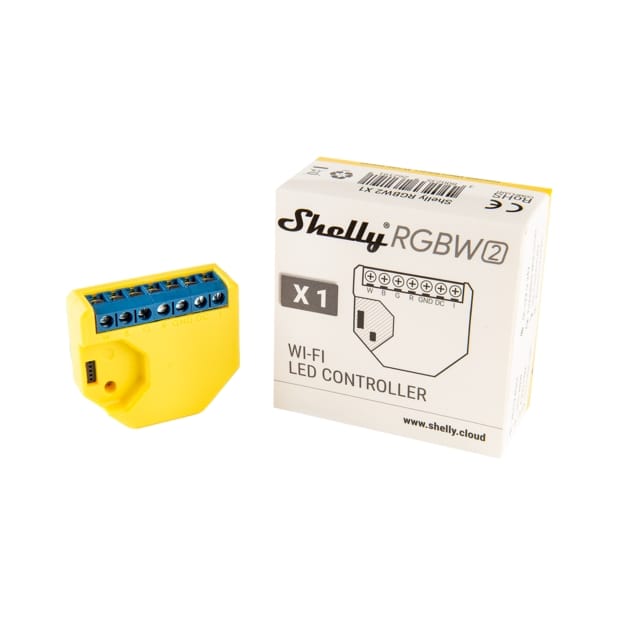

Shelly RGBW2

Make your LED strips smart in one easy step – connect like any LED controller and manage RGB+W, 4x single colour LED strips or any LED dimmable lights directly from your mobile device.

Request information

Make your LED strips smart in one easy step – connect like any LED controller and manage RGB+W, 4x single colour LED strips or any LED dimmable lights directly from your mobile device.

Reference

Technical specifications

Every value below is sourced from the manufacturer datasheet. Engineering-first hardware, documented down to the last gram.

01

POWER

Power supply AC
No
Power supply DC
12-24V
DC Power Output 12V per channel
45W
DC Power Output 24V per channel
90W
DC Power Output 12V combined power
144W
DC Power Output 24V combined power
288W

02

SPECIAL FUNCTIONS

Device temperature protection
No
Overload protection
No
Power measurement
Yes
Dimming
Yes
Working without a neutral line
No

03

FEATURES

Color changing
Yes
Predefined effects
Yes
Channels
4 Channels
Maximum load
12A
Operational temperature
0ºC to 40ºC
Device power consumption
< 1 W
Intelligent On/Off
Yes
Local and remote control
Yes
Sunrise/Sunset
Yes
Weekly Schedule
Yes
UL Listed option
No

04

CONNECTIVITY

Wireless/WiFi Protocol
802.11 b/g/n
Radiofrequency
2400 – 2500 MHz
Range
up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
